How to install label & ribbon roll on label printer?

1. Open the front cover of printer with push side buttons on both left & right sides.

2. Press the orange color buttons on left & right side to move print head.

3. Place label in media holder guide in outside direction.

4. Put Ribbon on spindle & fix it on rewinder for used ribbon rewind on upper side.

5. After this press the print head down & their will be "click" sound which recognize print head is locked.

6. Then close the front cover.

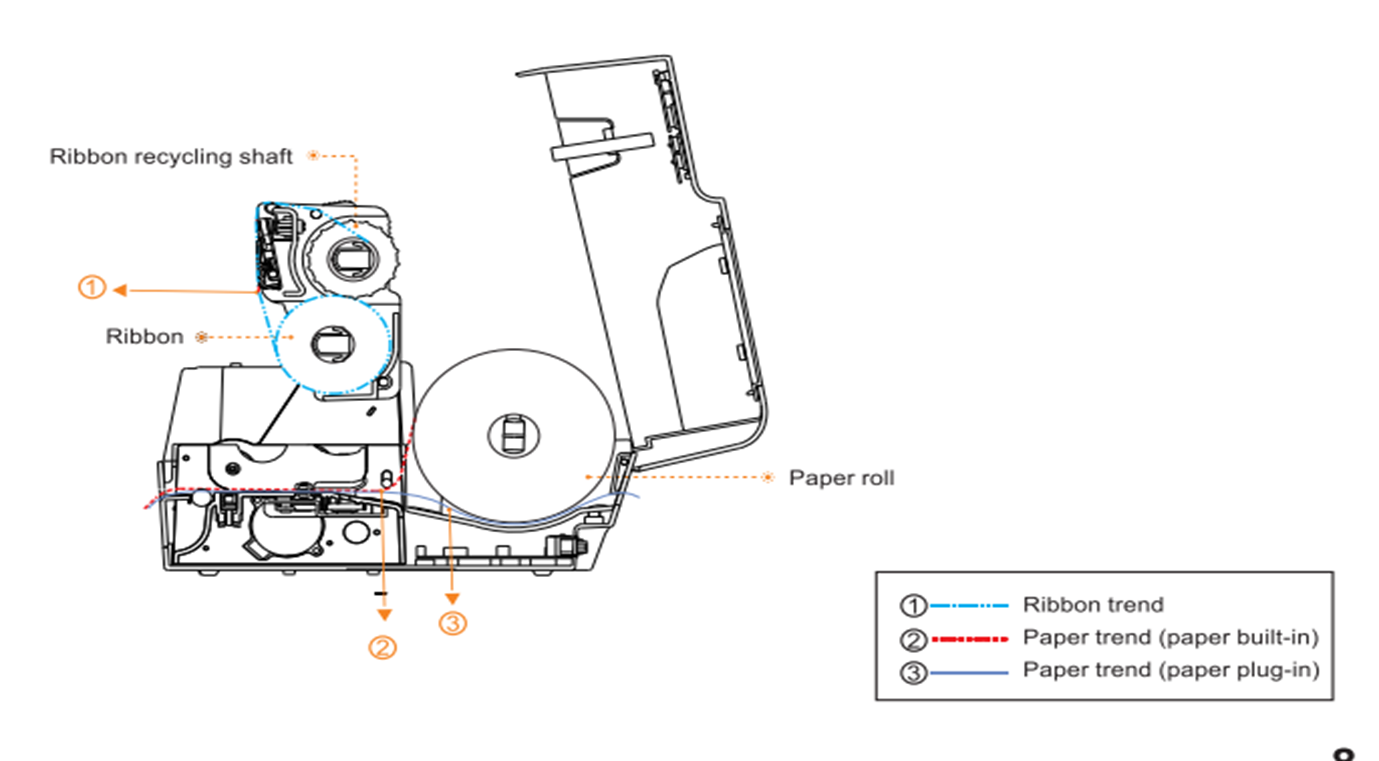

7. For more details check the attached picture.
